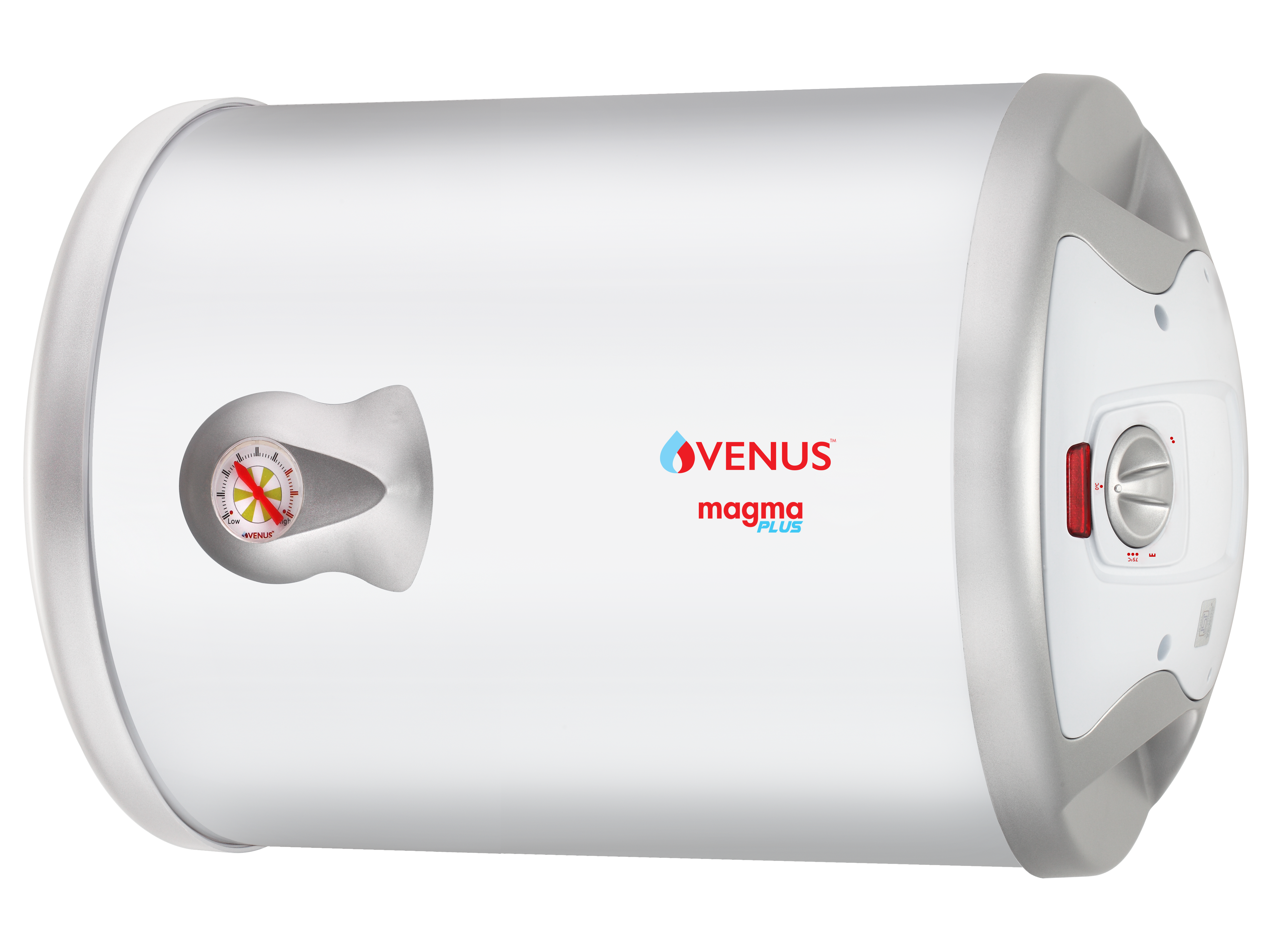

Magma Plus - Horizontal

Magma Plus water heaters is an excellent product that has been designed & built to last. It comes with a durable & corrosion resistant porcelain enamel tank. It is designed to be Hard Water Proof with Scaleguard Technology. An updated and pleasing design with metallic finish colours lends this model a new grace & charm to blend with your bathroom decor.

Side
Capacity In Litres :
Color
Promo Code

Customer Reviews

4.5

Exclusive Offers

Free Delivery - in 4 to 10* business days
Free installation is available in all over India.To check availability in your area contact us on: [08144666999]

Free Flexible Hose Pipe free-hosepipe

Write a Product Review and get 6 Months Additional Guarantee* (* Only applicable on products purchased through our website www.venushomeappliances.com)
Cancellation Policy

T&C Apply


Guarantee

5 Years on Inner Tank
2 Years on Heating Element
2 Years on Product
Check Product Delivery

Summary
Total
Inclusive of all taxes

MRP : 10,930
You Save 2,820

8,110

magma-hori-innerbanner

Key Features

Procelain

Porcelain Enamel Glass Lined Tank:

Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.

Glasslined

Incoloy 800 element:

Withstands temperatures up to 1000°C. Long lasting, even in case of hard water. Reduces scale formation. Prevents premature element failure. (Horizontal models).

puf-Nemonic

PUF Insulation:

3cm thick (PUF) insulation keeps the water hot for a much longer time and reduces energy consumption.

magma feature 5

8 Bars Pressure:

Suitable for pressure pumps and multi-storey buildings.

magma feature 6

Temperature Display

The display will real-time display the current temperature

lyra instant nm1

PP Outer Body:

Corrosion free.Shock proof. (Upto 25L models).

mn-discutout

Disc Cutout:

Backup safety device.Cuts off power at 80°C.Prevents overheating.From 10 L to 150 Liters - 80°C Disc cutout.(Horizontal models)

magma feature 4

Flexi Mount:

Flexible mounting options (Horizontal Model) Wall/Floor mounting. Left/right side opening options available - ideal for modern apartments.

ISI

ISI:

Fit water heater company in India to be awarded the prestigious ISI certification. This guarantees safety and gives the assurance of high performance.

magma feature 1

Scale Guard Technology:

In Ceramic heating element heat is transferred over a much larger surface area, which reduces the stress on heating element, lowers watts density/sq.cm and ensures less scale deposition on heating element.

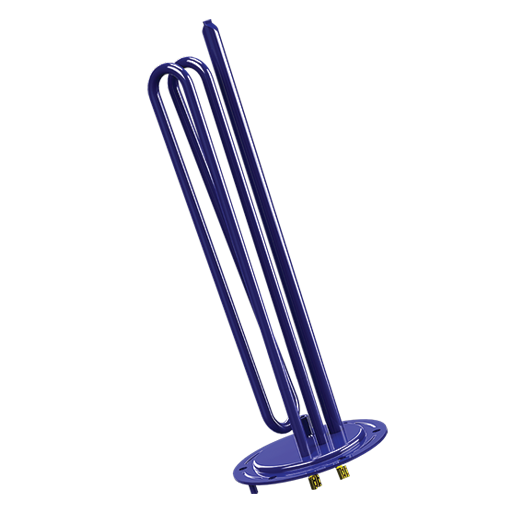

Glasslined Incoloy Heating Element

Incoloy is an alloy of steel, extremely durable under high temperatures. They can withstand temperatures up to 1000°C. Glasslined enamel Incoloy elements provide added protection. They are long-lasting even in hard water.

Porcelain Enamel Glass Lined Tank:

Scaleguard

Porcelain enamel tanks are widely used internationally and are approved for use in water heaters by BIS, IEC,i DIN(German), UL(US) standards. In India, VENUS is the first manufacturer to start enameling with Dry Powder Enamel system which is superior to other types of coatings.

Specification

Horizontal

Model :

Wattage(W) :

Capacity in Litres :

Time to raise Temp by 35°C :

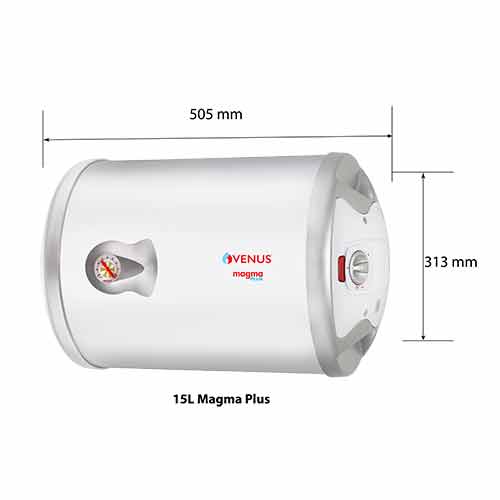

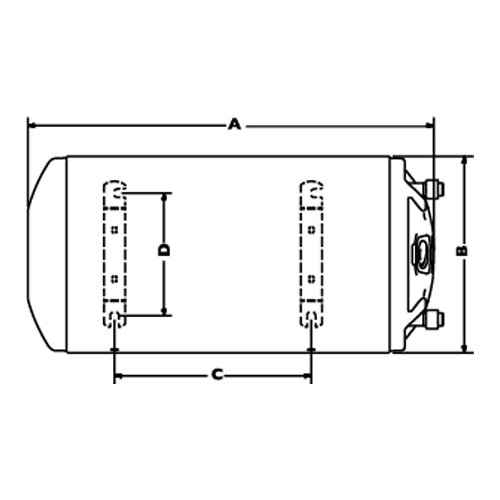

Dimensions (in mm) :
A
B
C
D

010GH

2000

10

13min

390

313

145

201

015GH

2000

15

20

505

313

160

201

025GH

2000

25

33min

665

313

317

201

035GH

2000

35

45min

680

363

277

201

050GH

2000

50

64min

890

363

474

201

070GH

3000

70

60min

765

453

367

201

100GH

3000

100

85min

1005

453

609

201

* Specifications subject to change without prior notice
